Eliminating "White Halos" in Second Life

This page will eventually be a discussion about the causes of the White Halo, and what can be done about it. At the moment, since the site is still undergoing revision, it's just the old tutorial, transplanted without frames.

If you'd like to see a movie of all of this in action, go to Easy Alpha Channels.

If you'd like to see a blow-by-blow explaining it all, keep reading.

Once again, a lesson on Alpha Channels in Second Life. This is not a movie (yet), but is the method I currently use to make perfect Alphas with no trace of a white halo, and good, vibrant colors in semi-transparent areas. These instructions are for Photoshop CS2, but will work with all other versions of Photoshop as well. (Your interface might look different, but the things will all be there somewhere. Consult your manual or on-line help if you're having trouble finding them.)

In this method, I use a free third party plug-in, available from Flaming Pear. Links are included in the text, or you can just download it by clicking the link above. (It's in the Free Plugins pack, a bit more than 2/3 of the way down the page.) They will work with any program that supports Photoshop plugins.

Also included in this tutorial is a set of Photoshop Actions that will automate the entire process for you. (A link is also provided within the Tutorial.) I'm afraid that these will only work if you have Photoshop.

Let's start.

In Second Life, we upload Targa (.tga) files to use as textures.

Targa files don't support layers; but they do support a single Alpha Channel, which shows as transparency in Second Life. Areas that are white in the Alpha Channel are opaque in SL. Areas that are black are completely transparent. Areas that are shades of gray are partially transparent, depending on how light the shade.

This tutorial assumes that you are working with layers on a transparent background. In other words, this will only work if you have already extracted the image, and there is no background left. If you have a background, you need to extract the picture you want to bring into SL first.There are dozens of ways to do that, and I haven't written a tutoral about it yet. Please Search the web, using the keywords Extract Photoshop and Tutorial to find one.

Targa files that have no Alpha Channel are 24 bit files. (8 bits each for the Red, Green, and Blue channels. 8x3=24)

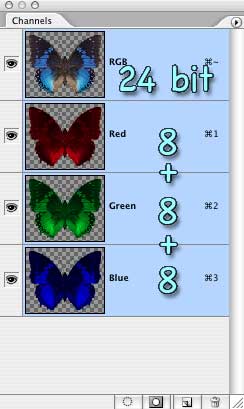

Channel Palette, showing the Red, Green, and Blue channels.

Targa files that have an alpha are 32 bits (8 bits more, for the additional channel. 8x4=32

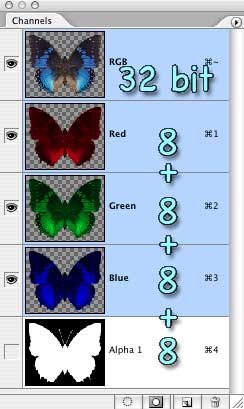

Channel Palette, showing Red, Green, Blue and Alpha.

In Adobe Photoshop, it's very simple to make the Alpha Channel. All you need to do is paint the image you want, using transparency where you want it. Transparent areas will show a checkerboard behind them. (You can change the checkerboard in Preferences > Transparency & Gamut. Tap Command/ctrl K to open the Preferences dialog.)

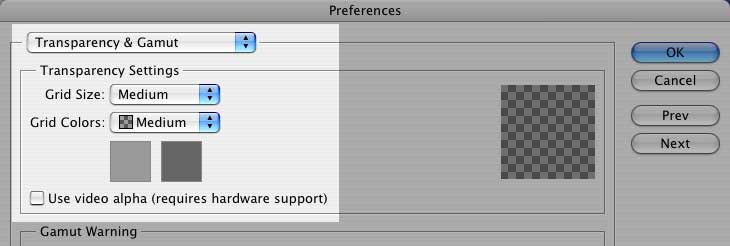

Change the values in these fields to change the checkerboard that shows transparency.

You can edit Alpha Channels manually in Photoshop (although not in Photoshop Elements,) and you might want to do that sometimes. But it's usually not necessary.

To create a perfect Alpha Channel, all you need to do is:

1. Make a copy of the file (so you can keep your layered original.) Click the "Create New Document from Current State" button in the History Palette to do this.

Click this button, at the bottom of the History palette, to make a copy of your document.

2. Merge the Visible Layers (Shift Command/ctrl E or use the Layer Palette Menu.) Obviously, if you only have a single layer in your document, you can skip this step.

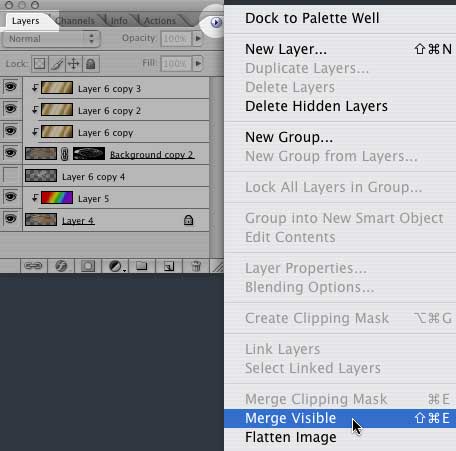

You can find the Merge Visible command in the fly out menu at the top right corner of the Layers palette.

3. Hold down Command/ctrl and click the thumbnail image in the Layers Palette to select the Pixels on that layer.

Command/ctrl click directly on the thumbnail image to load the pixels as a selection.

4. Go to Select > Save Selection.

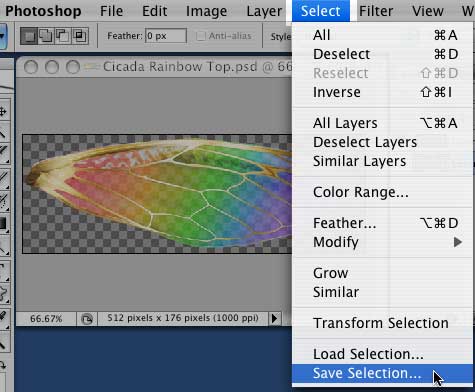

Go to Select > Save Selection to make an Alpha Channel

5. Select the defaults, and you have a perfect Alpha channel, white where you had opacity, black where you had transparency, and gray for partial transparency.

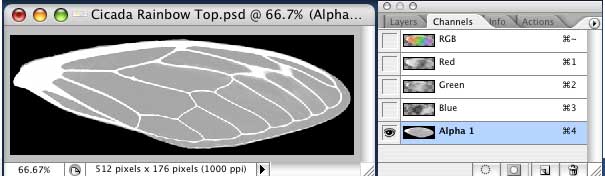

And here's your Alpha, perfect and totally painless to make.

But, if you upload this image into SL, you'll notice what we call the dreaded White Halo. If you have semi-transparent areas, you'll also notice that they appear washed out. The higher the transparency, the lighter they will be.

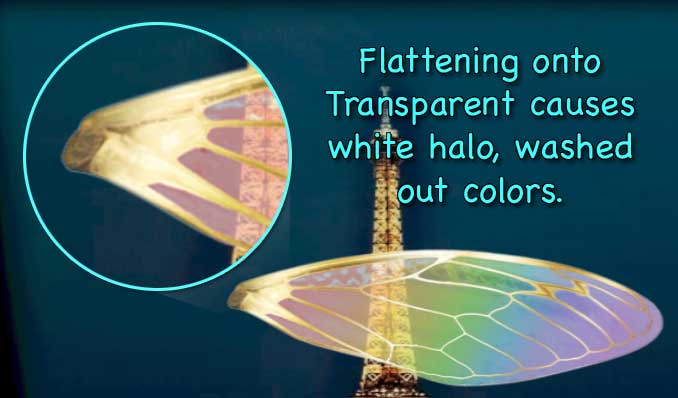

Flattening onto Transparent causes a white halo, and washed out colors.

Click here to go to the next page, and see how to fix the problem.
